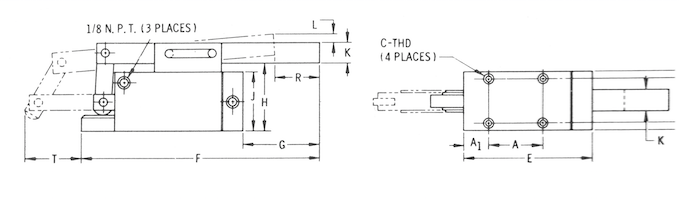

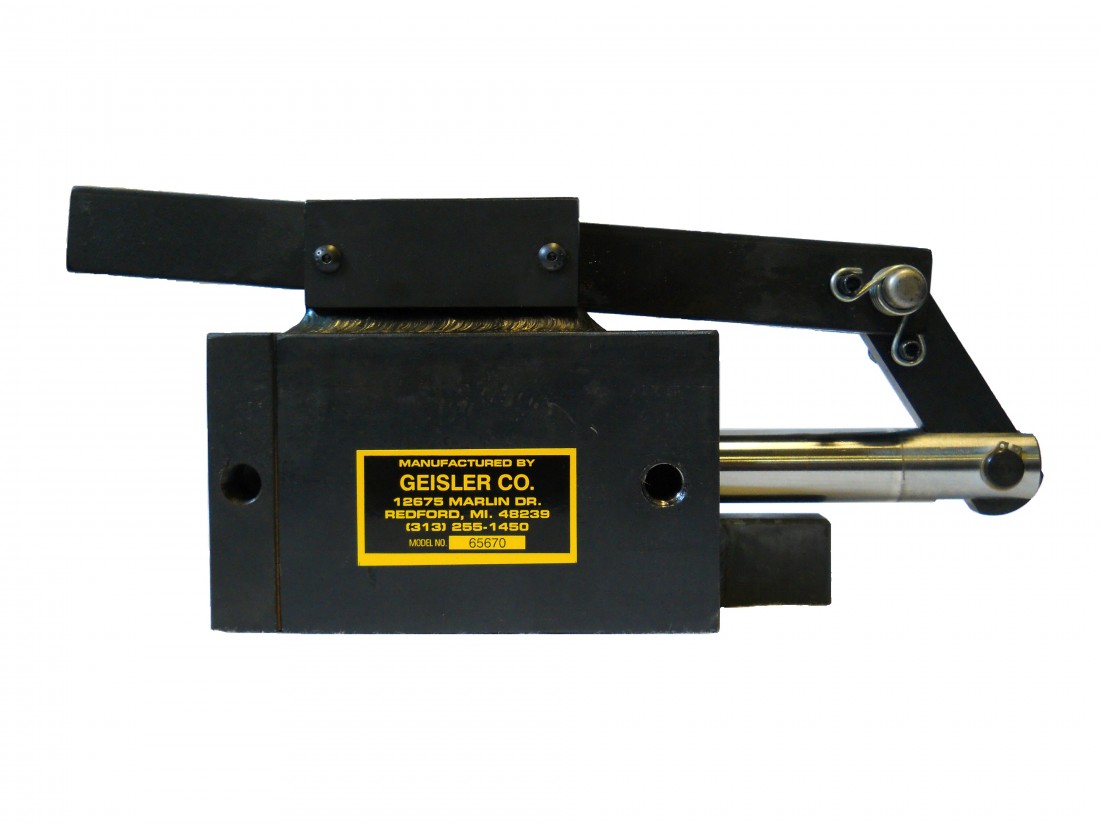

GEISLER WALKING BEAM CLAMP

Geisler Clamps

 - Geisler Company  - walkingbeam2















Geisler Clamps

 - Geisler Company  - 1

MAXIMUM LINE PRESSURE AIR:      150 P.S.I.      OIL: 250 P.S.I.
Walking beam clamps can be bottom mounted by means of four tapped holes provided in base of cylinder.

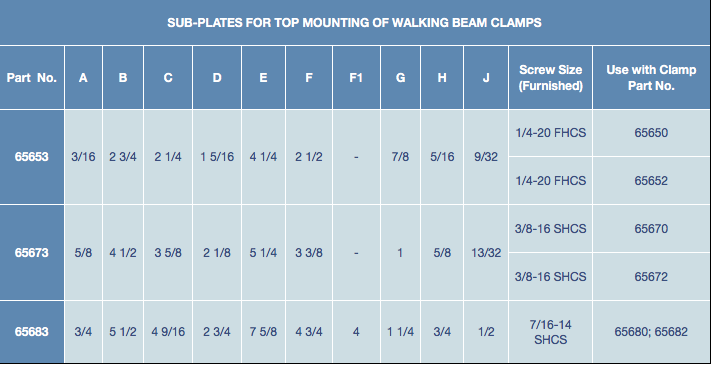

For top mounting, order appropriate sub-plate from those listed in sub-plate table below.

Geisler Clamps

 - Geisler Company  - unnamed

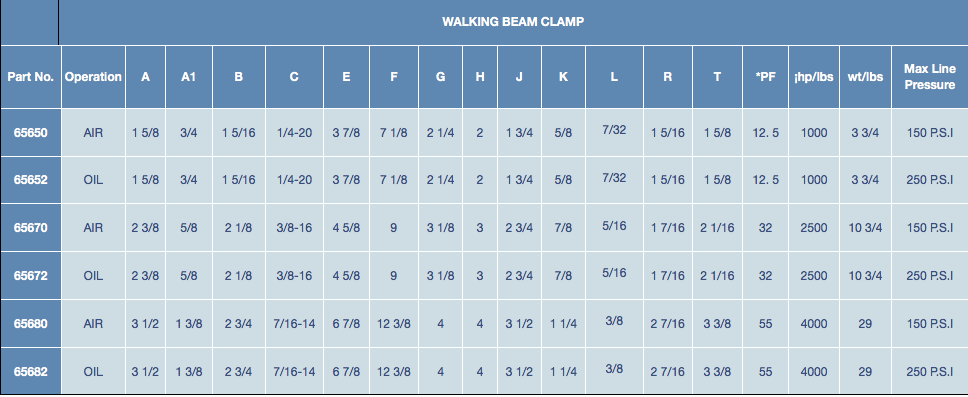

*POWER FACTOR: SUBSTITUTE IN FORMULA TO DETERMINE MAXIMUM CLAMPING PRESSURE.
¡MAXIMUM HOLDING CAPACITY IN LOCKED POSITION WITH SPINDLE MOUNTED NEAR END OF BAR
Note: Use filter-lubricator with all air operated clamps.

Formula to determine approximate maximum clamping pressure at spindle of walking beam and knuckle action clamps in full lock-up position.
Clamping
Pressure =                                 *PF x P.S.I. INPUT PRESSURE
                      DISTANCE FROM C/L OF BAR PIVOT TO C/L OF SPINDLE(INCHES)

Geisler Clamps

 - Geisler Company  - unnamed-1

Geisler Clamps

 - Geisler Company  - 2

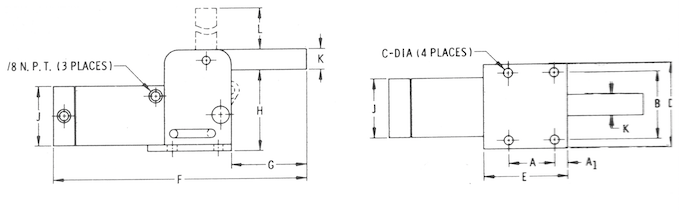

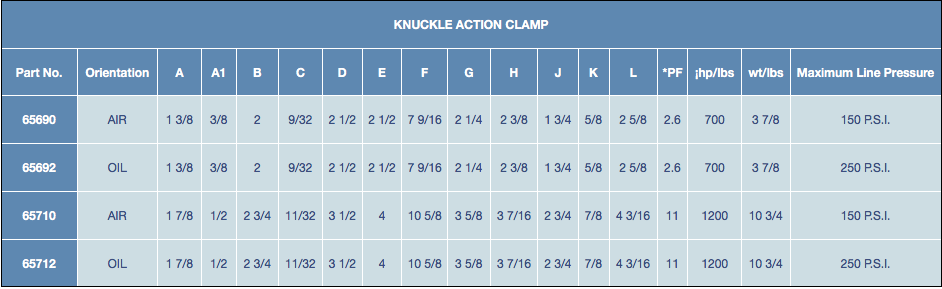

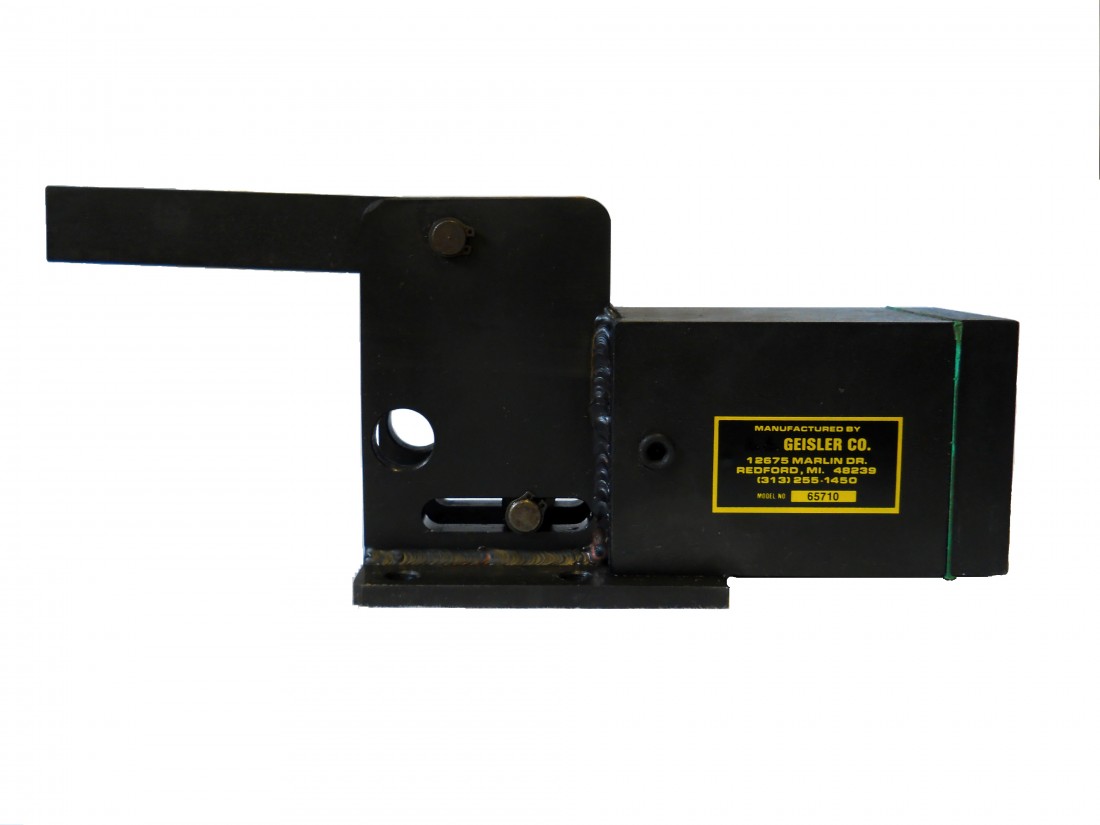

GEISLER KNUCKLE ACTION CLAMP

Geisler Clamps

 - Geisler Company  - knuckle_action_clamp















Geisler Clamps

 - Geisler Company  - 3

MAXIMUM LINE PRESSURE      AIR: 150 P.S.I.      OIL: 250 P.S.I.

Geisler Clamps

 - Geisler Company  - unnamed-2

*POWER FACTOR: SUBSTITUTE IN FORMULA TO DETERMINE MAXIMUM CLAMPING PRESSURE.
¡MAXIMUM HOLDING CAPACITY IN LOCKED POSITION WITH SPINDLE MOUNTED NEAR END OF BAR
Note: Use filter-lubricator with all air operated clamps.

Formula to determine approximate maximum clamping pressure at spindle of walking beam and knuckle action clamps in full lock-up position.
Clamping
Pressure =                                 *PF x P.S.I. INPUT PRESSURE
                    DISTANCE FROM C/L OF BAR PIVOT TO C/L OF SPINDLE(INCHES)

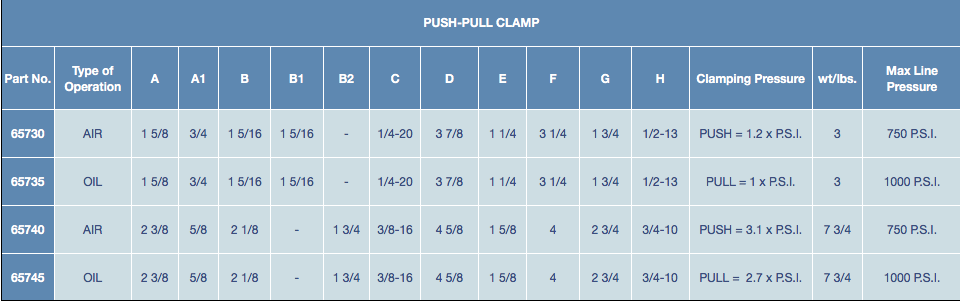

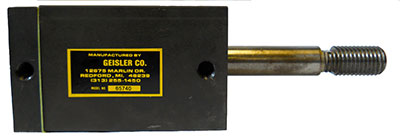

GEISLER PUSH-PULL CLAMP



Geisler Clamps

 - Geisler Company  - geisler_push-pull_clamp

Geisler Clamps

 - Geisler Company  - 4

MAXIMUM LINE PRESSURE      AIR: 750 P.S.I.      OIL: 1000 P.S.I.

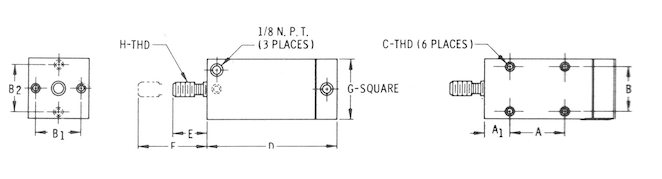

Push-pull clamps are provided with tapped holes in face for vertical face
mounting and in bottom of cylinder for horizontal bottom mounting.

Geisler Clamps

 - Geisler Company  - unnamed-3

*POWER FACTOR: SUBSTITUTE IN FORMULA TO DETERMINE MAXIMUM CLAMPING PRESSURE.
¡MAXIMUM HOLDING CAPACITY IN LOCKED POSITION WITH SPINDLE MOUNTED NEAR END OF BAR






Clamp Features

  • Compact rugged construction -- cylinder and clamp are an integral welded unit-- piston rod is hard chrome plated for longer wear
  • Superior clamping force in minimum space -- eliminates over-the-center lock-up losses in holding pressure common with ordinary toggle action clamps
  • Easy "on the job" cylinder maintenance when required -- only two standard 0-ring seals to replace
  • Double action cylinder for positive reliable operation - cant jam or hang up -- will hold clamp bar in locked position even if air supply fails
  • Maybe mounted in any position -- provisions for porting from either side lend versatility
  • Restricted porting provides smooth shock-free action
  • Cold rolled steel clamp bar may be drilled, tapped, machined, or welded to suit any application
  • Available models for air operation up to a maximum of 150 P.S.I. and for oil operation up to a maximum of 250 P.S.I.
  • Well suited to automated fixture design THE REVOLUTIONARY "WALKING BEAM” MODEL OFFERS ALL OF THE ABOVE FEATURES PLUS:
  • Excellent mechanical advantage on final lock-up. Actual clamping pressures up to five times line pressure on the small model and up to ten times line pressure with the larger model.
