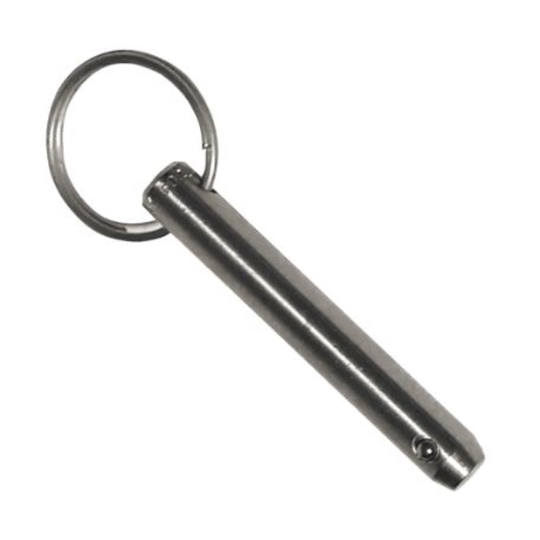

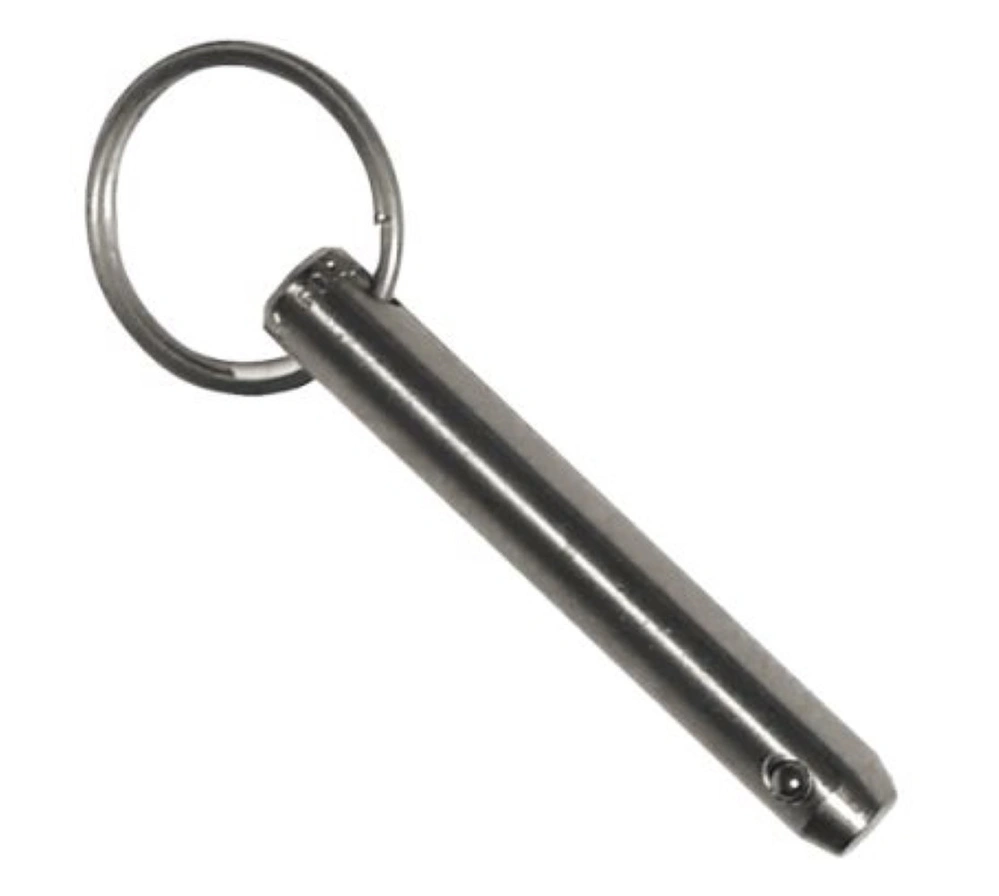

Carr Lane CL-3-EDP-1.00-C Economy Detent Pin with Cable Assembly

Geisler SKU:
IT-101511
MFR P/N:
CL-3-EDP-1.00-C
Price:
Buy 1 $3.77/EACH
Buy 20 $3.39/EACH
Buy 50 $3.30/EACH
Buy 100 $3.20/EACH
Buy 200 $3.02/EACH
Buy 500 $2.94/EACH
In Stock

Description

Economical quick-release alignment pin with a solid steel shank and one spring-loaded locking ball. This type of Detent Pin has a ring instead of a solid shoulder, for applications where exact grip length is not important. Locking ball holds the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.

Specifications

Manufacturer:
Carr Lane
Unit:
Inch
Pin Diameter:
3/16
Grip Length:
1.00
Material:
Mild Steel, Zinc Plated
Optional Cable Assembly:
Yes
