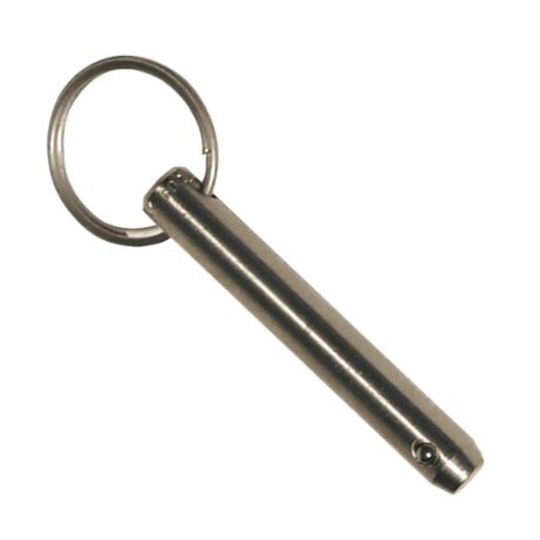

Carr Lane CL-5-MDP-1.75-S Marine Detent Pin

Geisler SKU:
IT-026992
MFR P/N:
CL-5-MDP-1.75-S
Price:
Buy 1 $16.78/EACH
Buy 20 $15.10/EACH
Buy 50 $15.10/EACH
Buy 100 $15.10/EACH
Buy 200 $15.10/EACH
Buy 500 $15.10/EACH
In Stock

Description

Marine Detent Pins are made of 316 stainless steel for extra corrosion resistance. Economical quick-release alignment pin with a solid shank and spring-loaded locking balls. This type of Detent Pin has a ring instead of a solid shoulder, for applications where exact grip length is not important. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA.

Specifications

Manufacturer:
Carr Lane
Unit:
Inch
Pin Diameter:
5/16
Grip Length:
1.75
Material:
316 Stainless Steel
Optional Cable Assembly:
No
