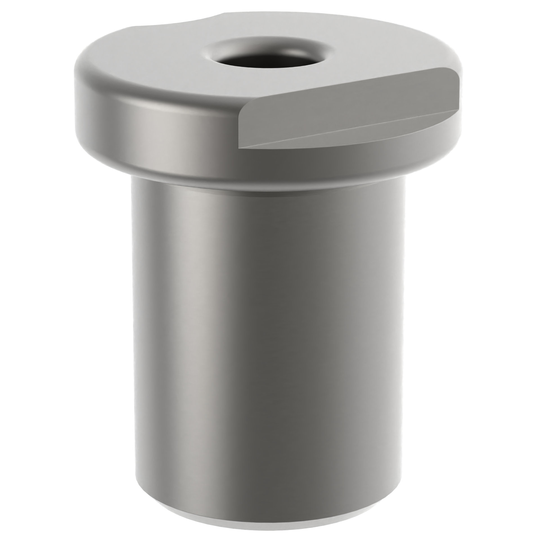

FM 64-12 .6250 Flat Milled Drill Bushing

Designated as Type FM, Fixed Renewable bushings are mostly used when the number of holes drilled will be greater than the expected life of the bushing. By slipping the bushing out of the liner another size may be installed for the next operation to be performed. Clamps or lock screws are used to secure them in the fixture. Some manufacturers have combined SF and FM to make SFX.

Specifications

ID:

5/8 (.6250)

OD:

1

Length:

3/4

ANSI (OD):

64

ANSI (LENGTH):

12

ANSI (ID):

.6250
