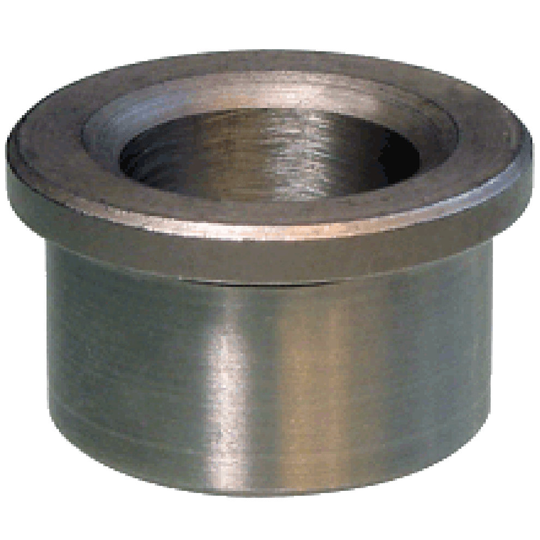

HL 64-24 Head Liner Bushing

Designated as Type HL, Head Liner bushings are used when excessive axial loads or pounding would dislodge the headless liner. Type HL may be used with the head projected above the fixture or countersunk flush with the top surface of the fixture. HL bushings are available with extra stock on the outside diameter when neccessary, and ordered as unground. *Length is measured overall including head.

Specifications

ID:

3/4

OD:

1

Length:

1-1/2

ANSI (OD):

64

ANSI (LENGTH):

24
