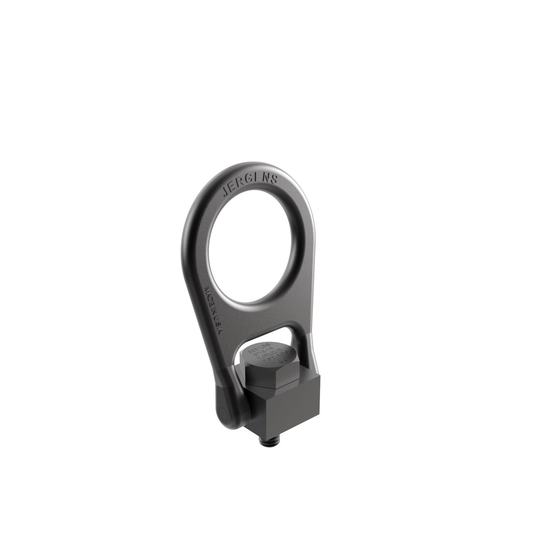

Jergens 23915 Hoist Ring, Forged, 5/8-11

Jergens Forged Center-Pull Hoist Rings integrate a solid center brace lift bail into our most popular style of product. This design replaces the use of stationary eyebolts and eliminates the possibility of spreading the lift ring in misapplications. Forged Center-Pull Hoist Rings are ideal for OEM applications such as lifting tooling columns and large fixtures.

Specifications

Base Diameter:

2"

Finish:

Black Oxide

Load Rating:

4000 lbs

Manufacturer:

Jergens

Mounted Height:

6 3/8"

U Bar Diameter:

3/4"

U Bar Width:

4 7/16"

Unit:

Inch

Thread Size:

5/8-11

Material:

Alloy Steel

Thread Length:

1 1/4"
