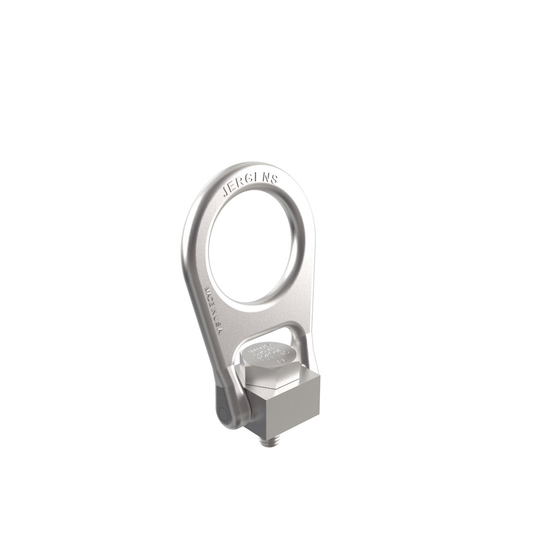

Jergens 23956-SS Hoist Ring, Forged, M8X1.25 SS

Jergens Stainless Steel Forged Center-Pull Hoist Rings integrate a solid center brace lift bail into our most popular style of product. This design replaces the use of stationary eyebolts and eliminates the possibility of spreading the lift ring in misapplications. Stainless Steel Forged Center-Pull Hoist Rings are ideal for OEM applications such as lifting tooling columns and large fixtures.

Specifications

Base Diameter:

25.4 mm

Load Rating:

400 kg

Manufacturer:

Jergens

Mounted Height:

91.3 mm

U Bar Diameter:

6.3 mm

U Bar Width:

57.2 mm

Unit:

Metric

Thread Size:

M8-1.25

Material:

17-4 PH Stainless Steel

Thread Length:

12 mm
