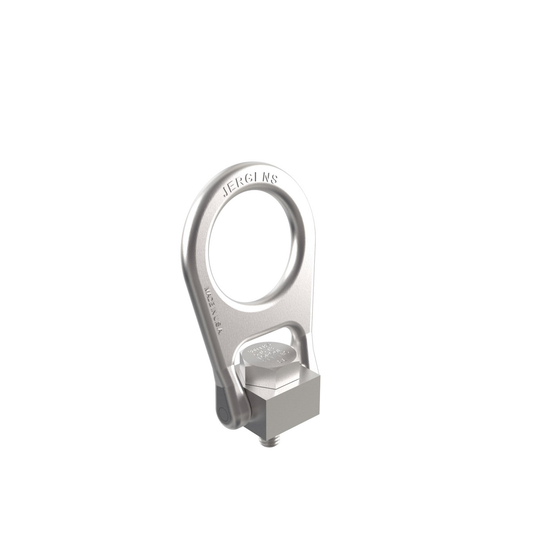

Jergens 23965-SS Hoist Ring, Forged, M16X2.0 SS

Geisler SKU:
IT-121663
MFR P/N:
23965-SS
Out of Stock
Call for Availability

Description

Jergens Stainless Steel Forged Center-Pull Hoist Rings integrate a solid center brace lift bail into our most popular style of product. This design replaces the use of stationary eyebolts and eliminates the possibility of spreading the lift ring in misapplications. Stainless Steel Forged Center-Pull Hoist Rings are ideal for OEM applications such as lifting tooling columns and large fixtures.

Specifications

Base Diameter:
50.8 mm
Load Rating:
1900 kg
Manufacturer:
Jergens
Mounted Height:
161.9 mm
U Bar Diameter:
19 mm
U Bar Width:
112.7 mm
Unit:
Metric
Thread Size:
M16-2.0
Material:
17-4 PH Stainless Steel
Thread Length:
24 mm
