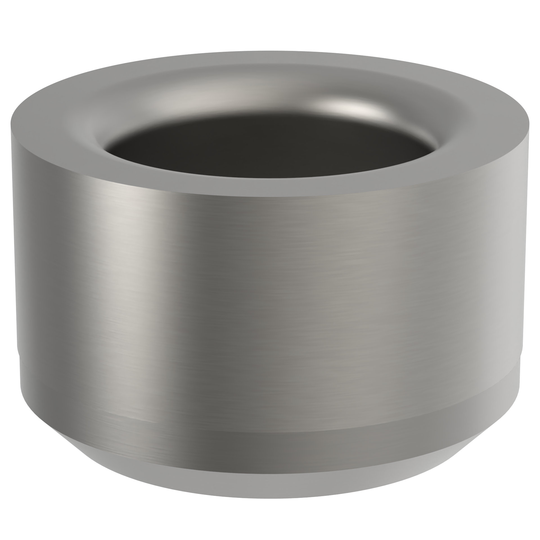

L 88-22 Liner Bushing

Designated as Type L, Liner bushings are similar to press fit type bushings but are pressed in the fixture to maintain precise location for the slip fixed bushings. Their hardened condition protects the fixture from wear of repeated bushing replacement. These parts may be ordered as unground when extra outside diameter stock is needed. Type L are interchangeable with Type P up to 1" ID size.

Specifications

ID:

1 (1.0000)

OD:

1-3/8

Length:

1-3/8

ANSI (OD):

88

ANSI (LENGTH):

22
