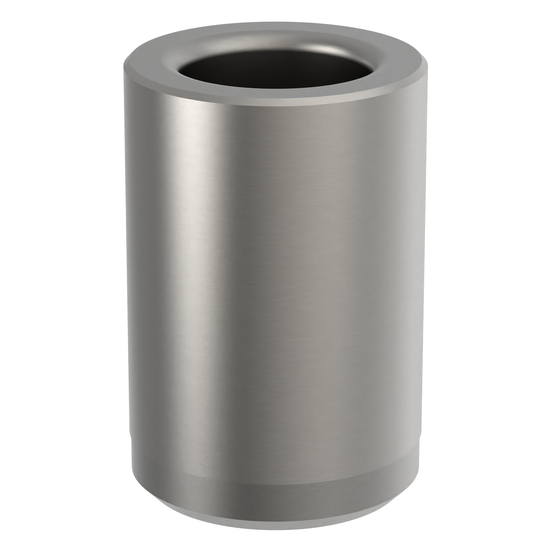

PM 18-12 11.80 Metric Press-Fit Drill Bushing

Type PM, Headless press fit bushings are the least expensive and most popular bushings. Generally used in single step drilling. Pressed flush in the fixture plate they can be spaced closer together than other types of bushings. Available as unground with additional outside diameter stock. Type PM designates metric dimensions.

Specifications

ID:

11.80 mm

OD:

18 mm

Length:

12 mm

ANSI (OD):

18

ANSI (LENGTH):

12

ANSI (ID):

11.80
