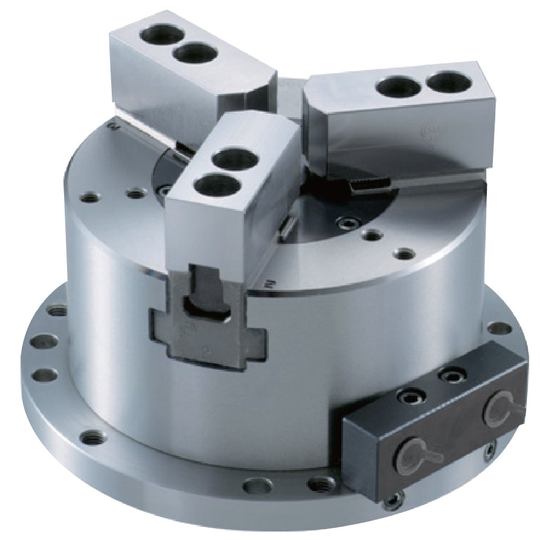

Samchully MCA-10 Stationary Pneumatic Chuck

10" low-profile stationary pneumatic chuck with built-in cylinder; 48kN clamping force, 6.3mm jaw stroke dia, 254mm max and 50mm min chucking dia

Specifications

Chuck Actuation Style:

Self-Contained

Chuck Diameter (inches):

10

Grip Diameter Max (mm):

254

Grip Diameter Min. (mm):

50

Jaw Stroke Diameter (mm):

6.3

Manufacturer:

Samchully

Maximum RPM:

N/A

Mount:

Plain Back

Number of Jaws:

3

Operation Type:

Air

Through-hole Diameter (inches):

Closed-center
