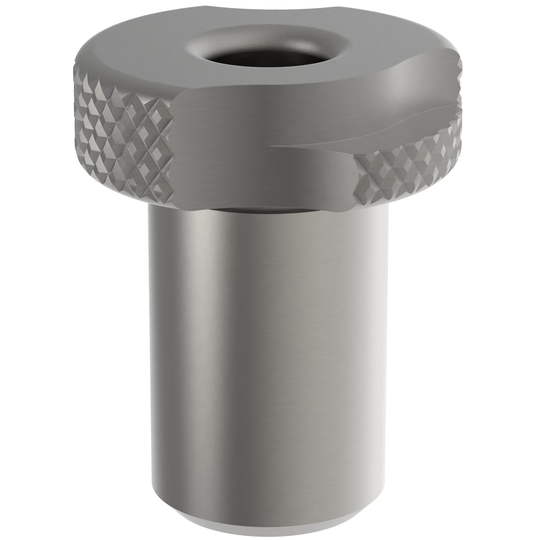

SFM 42-30 28.00 Slip/Fixed Renewable Bushing, Metric

Designated as Type SFM, Slip/Fixed Renewable bushings are mostly used when the number of holes drilled will be greater than the expected life of the bushing. Type SF is also used when a hole is drilled, then a reaming or tapping operation is required. By slipping the bushing out of the liner another size may be installed for the next operation to be performed. Clamps or lock screws are used to secure them in the fixture. Type SFM designates metric dimensions.

Specifications

ID:

28.00 mm

OD:

42 mm

Length:

30 mm

ANSI (OD):

42

ANSI (LENGTH):

30

ANSI (ID):

28.00
